REACH STACKER

PRODUCT DESCRIPTION

Increasing fuel costs and tougher carbon emissions standards means you need a reach stacker that is leaner and greener while still maintaining the highest levels of operational productivity when lifting containers or handling other materials.

The Reach stacker provides you with an eco-efficient solution that is guaranteed to use significantly less fuel than other reach stackers.

Cutting your fuel costs and reducing your carbon emissions while enhancing your environmental reputation.

FEATURES:
  • feel more in control with smoother acceleration
  • feel safer with less cabin noise and emissions
  • be able to react quickly with responsive braking and steering systems.
  • speed up container handling and lifting with improved joystick control and overall responsiveness.
APPLICATION:

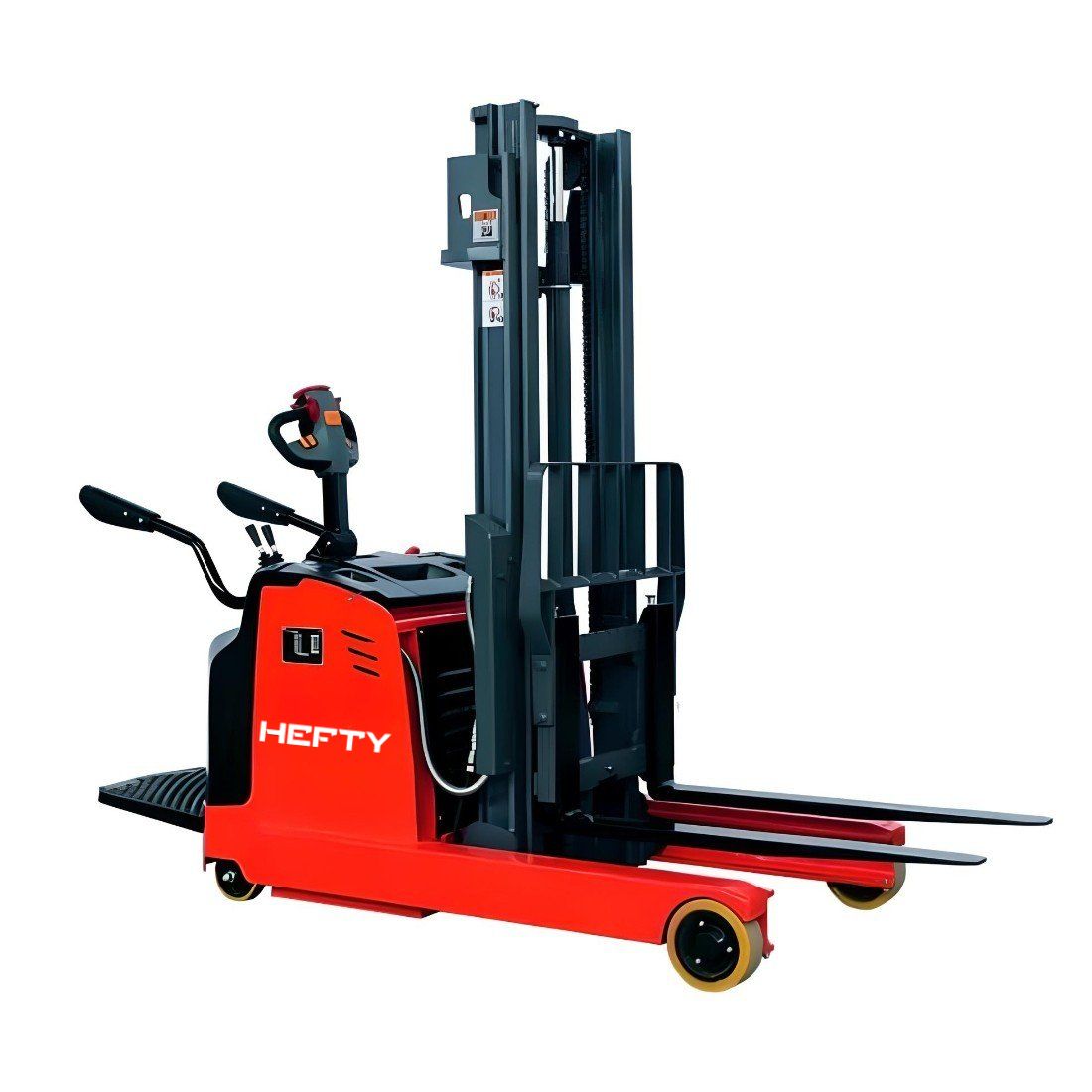

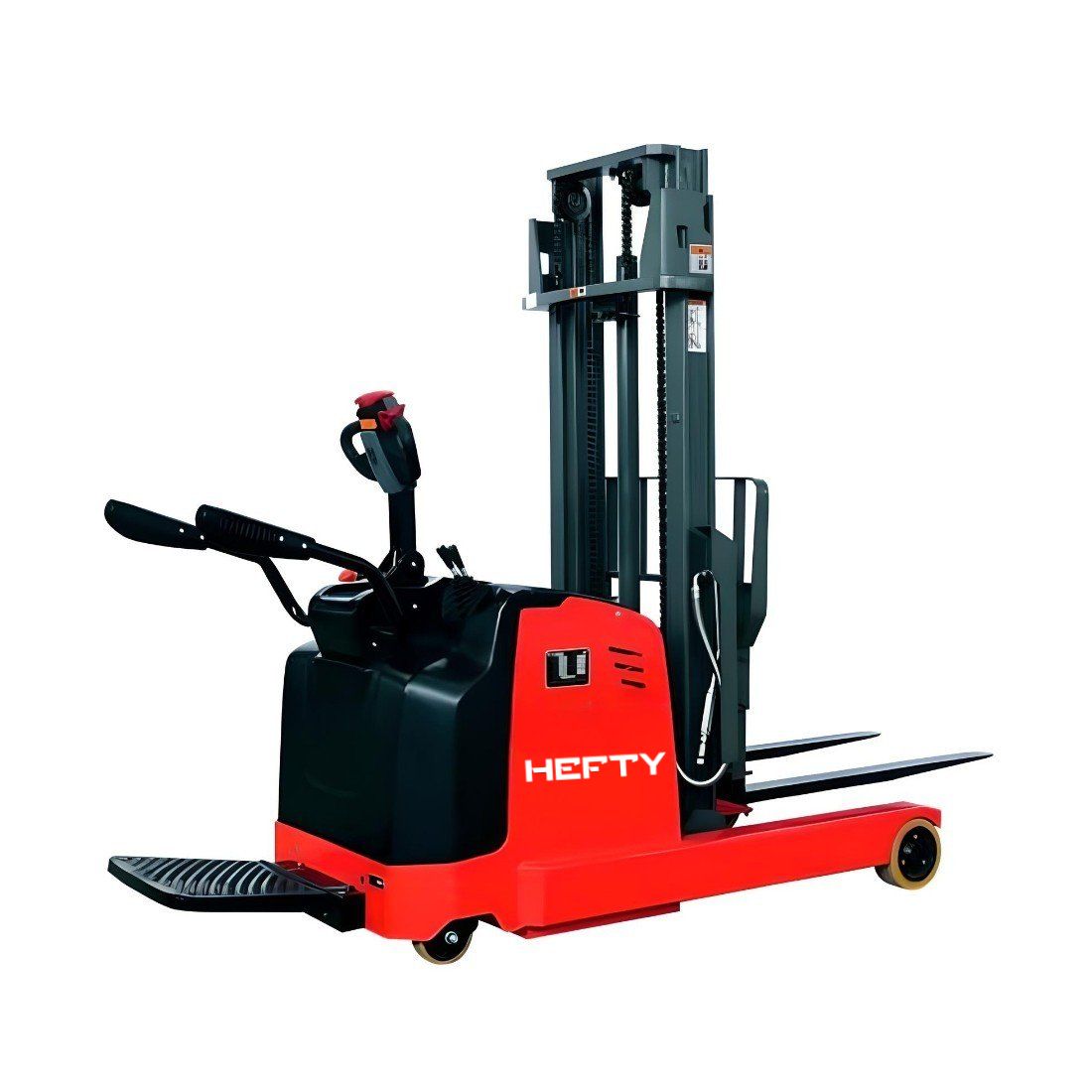

Electric stand-on reach truck especially for narrow aisles and high racking use.

Good efficiency on stacking, reaching. Floating balance driving system ensures comfortable control, fixed driving system ensures best stability.

The 48V/700Ah Lead-acid battery makes it possible to cover a full-time workload and even for extended periods of time.

Besides, the full-colour display, electric steering system and I-Beam mast support the driver to achieve easy, comfortable and safe handling.

1.1 Manufacturer HEFTY-EP HEFTY-EP HEFTY-EP HEFTY-EP HEFTY-EP
1.2 Model designation CQE12R CQE15R CQD16L CQD20L CQD15S
1.3 Drive unit Electric Electric Electric Electric Electric
1.4 Operator type Standing Standing Seated Seated Standing
1.5 rated capacity Q kg 1200 1500 1600 2000 1500
1.6 Load center distance c mm 500 500 600 600 600
1.8 Load distance，centre of drive axle to fork x mm 346 346 390 377 500③
1.9 Wheelbase y mm 1310 1412 1474 1515 1504
2.1 Service weight kg 1745 1955 2855 3510 2370①
2.3.1 Axle loading, unladen front/rear kg 1052/782 1132/901 1840/1060 2210/1320 1621/846
2.4.1 Axle loading, fork advanced, laden front/rear kg 454/2510 391/3093 470/4060 470/5060 490/3445
2.5.1 Axle loading, fork retracted, laden front/rear kg 1110/1875 1244/2237 1500/3040 1870/3620 1510/2416
3.1 Tyre type mm Polyurethane Polyurethane Polyurethane Polyurethane Polyurethane
3.2.1 Tyre size, front mm Φ230× 75 Φ230× 75 Φ260×105 Φ343×140 Φ260×105
3.3.1 Tyre size, rear mm Φ210× 85 Φ254× 102 Φ254×114 Φ310×118 Φ254×114
3.4 Additional wheels mm Φ130× 55 Φ130× 55 Φ102×51 Φ102×51 Φ178×73
3.5.1 Wheels, number front/rear (x=drive wheels) mm 1x+2/2 1x+2/2 1x/2 1x/2 1x/2
3.6 Tread, front b10 mm 634 634 —— —— 700
3.7 Tread, rear b11 mm 900 914 974 1148 974
4.1 Tilt of mast/fork carriage forward/backward α/β ° 2/4 2/4 2/4 2/4 2/4
4.2 Height, mast lowered h1 mm 2065 2065 2780 3219 2050②
4.3 Free lift h2 mm —— —— 1522 1712 0②
4.4 Lift height h3 mm 3000 3000 6500 7500 3000②
4.5 Height, mast extended h4 mm 4000 4000 7535 8565 3860②
4.7 Height of overhead/ guard cabin h6 mm —— —— 2153 2213 2255
4.8 Seat height/standing height h7 mm 150 150 1050 1076 335
4.10 Height of wheel arms h8 mm 235 275 277 333 280
4.19 Overall length l1 mm 2312 2332 2434 2463 2335③
4.20 Length to face of forks l2 mm 1242 1262 1330 1393 1265③
4.21 Overall width b1/b2 mm 850/988 850/1018 1090 1270 1078/1090
4.22 Fork dimensions s/e/l mm 40/100/1070 40/100/1070 40/100/1070 40/120/1070 40/100/1070
4.23 A,B Fork carriage class/type A, B 2A 2A 2A 2A 2A
4.24 Fork carriage width b3 mm 956 956 872 990 830
4.25 Distance between fork-arms b5 mm 200-650 200-650 200-655 240/770 200-620
4.26 Distance between wheel arms/loading surfaces b4 mm 698 698 750 915 750
4.28 Reach distance l4 mm 500 610 590 585 665③
4.31 Ground clearance, laden, below mast m1 mm 75 75 80 60 70
4.32 Ground clearance, center of wheelbase m2 mm 70 70 70 75 70
4.34.1 Aisle width for pallets 1000×1200 crossways Ast mm 2684 2726 2789 2835 2745③
4.34.2 Aisle width for pallets 800×1200 crossways Ast mm 2739 2766 2840 2885 2770③
4.35 turning radius Wa mm 1597 1697 1720 1770 1765
4.37 Length across wheel arms l7 mm 1700 1822 1870 1948 1912
5.1 Travel speed, laden/unladen km/ h 5.5/6.0 5.5/6.0 9/9.3 10/11 8.5/9
5.2 Lifting speed, laden/unladen m/s 0.12/0.15 0.12/0.145 0.35/0.55 0.38/0.55 0.28/0.44
5.3 Lowering speed, laden/unladen m/s 0.18/0.12 0.18/0.12 0.55/0.5 0.41/0.38 0.52/0.48
5.4 Reaching speed, laden /unladen m/s 0.08/0.10 0.07/0.08 0.15/0.15 0.18/0.18 0.1/0.1
5.8 Max. gradeability, laden/unladen % 6/10 6/10 8/10 10/15 8/10
5.10 Service brake Electromagnetic Electromagnetic Electromagnetic Electromagnetic Electromagnetic
5.11 Parking brake Mechanical Mechanical Electromagnetic Electromagnetic Electromagnetic
6.1 Drive motor rating S2 60 min kW 1.6 1.6 4 7 4
6.2 Lift motor rating at S3 15% kW 3 3 11.75 20 8.2
6.4 Battery voltage/nominal capacity V/Ah 24/210 24/280 48/405 48/405 48/420
6.5 Battery weight kg 190 230 465 510 739
8.1 Type of drive unit AC AC AC AC AC
10.5 Steering design Electronic Electronic Electronic Electronic Electronic
10.7 sound pressure level at the driver’s ear dB(A) 74 74 75 75 75
