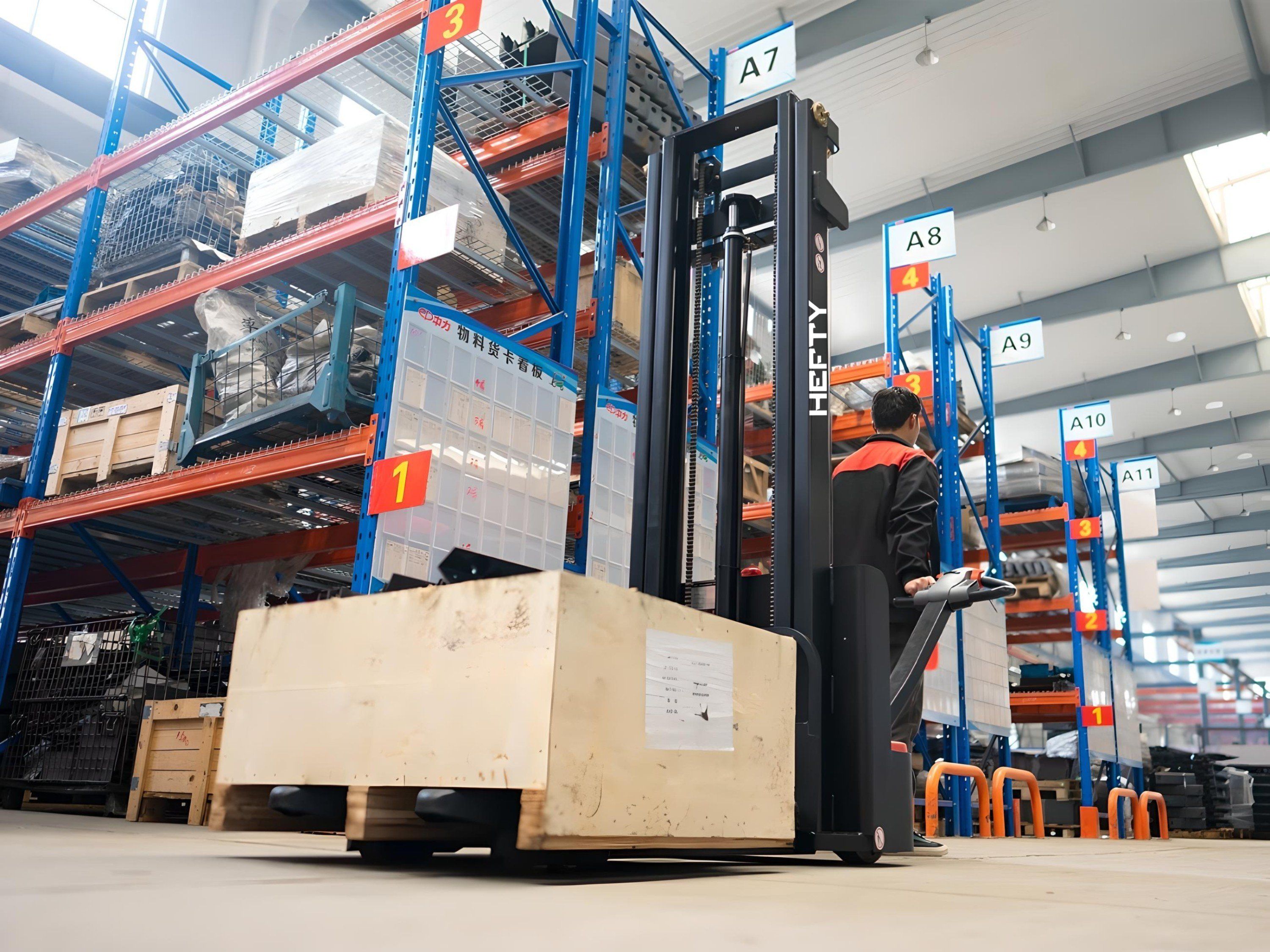

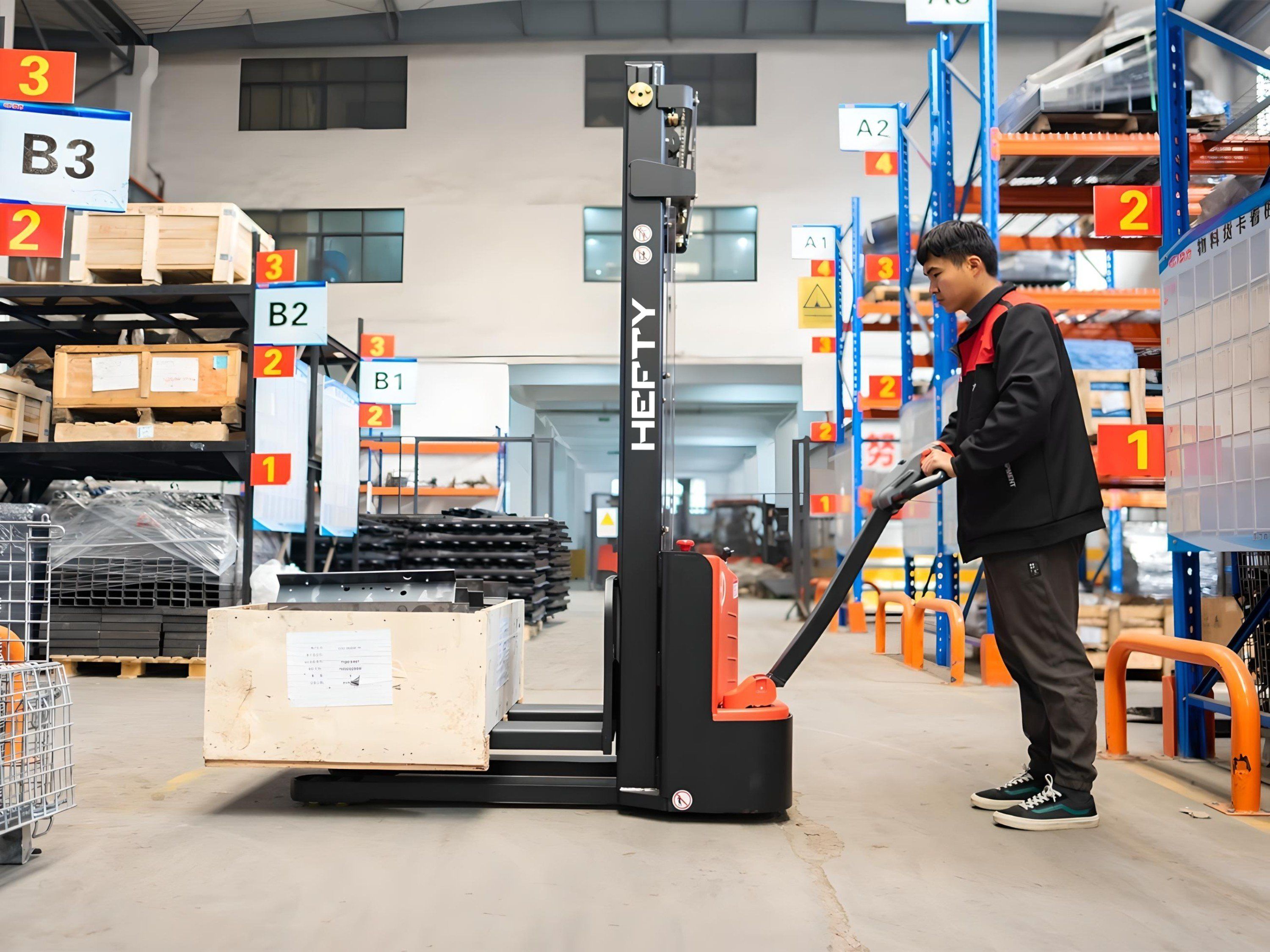

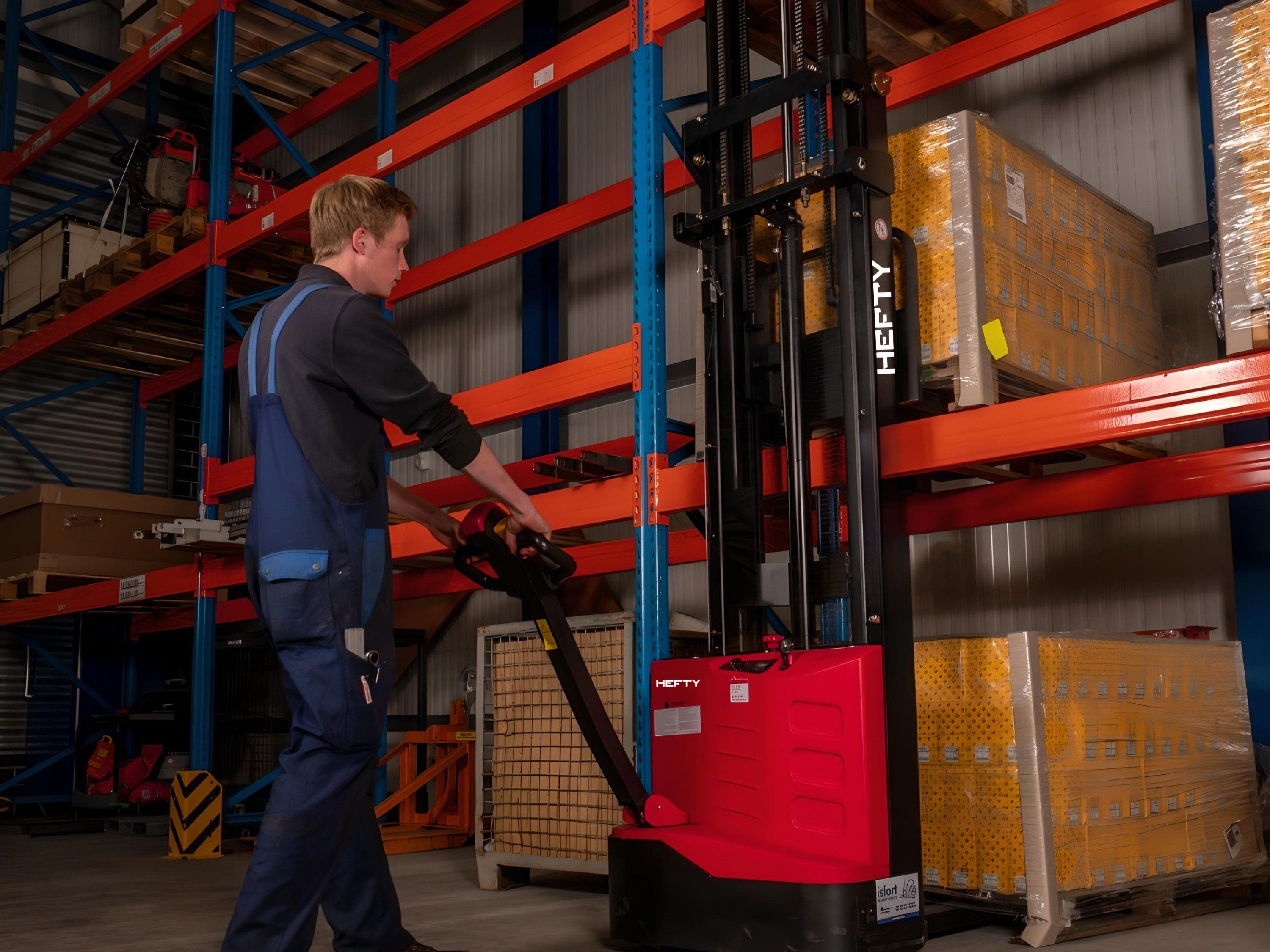

FULL ELECRIC STACKER DUAL SIDE PUMP

PRODUCT DESCRIPTION

Full electric Stackers Offer Precision and Strength in Small Spaces

These stackers deliver powerful performance, responsive control, excellent manoeuvrability and visibility so operators can work safely and productively in small spaces.

This is engineered for harsh and less-than-perfect conditions.

The platform stackers are built to be rugged, precise and powerful.

Put them to the test and you’ll find robust performance, simplified use and excellent control.

Model Unit HFESDP-2T-II (2500) HFESDP-B2T-II (3000) HFESDP-B2T-II (3500)
Max. load capacity kg 2000 2000 2000
Max. lifting height mm 2500 3000 3500
Max. load at Max. lifting height kg 1600 1250 1000
Min. lifting height mm 90 90 90
Load center mm 600 600 600
Turning radius mm 1665 1665 1665
Mast Type 2 stage mast 2 stage mast 2 stage mast
Net Weight kg 1000 1050 1100
Overall Length L (mm) 2010 2010 2010
Overall Length,incl.pedal L1(mm) 2415 2415 2415
Overall Width W(mm) 820 820 820
Overall Height,mast lowered H (mm) 1765 2015 2165
Overall Height,mast extended H1(mm) 2950 3460 3760
Fork Dimensions(L3*W2*H5) mm 1150*175*60 1150*175*60 1150*175*60
Forks Outside Width mm 560/680 560/680 560/680
Forks inside Width mm 210/330 210/330 210/330
Wheel type PU PU PU
Wheels number drive/balance/load 1/1/4 1/1/4 1/1/4
Tyre size,drive mm Φ230*70 Φ230*70 Φ230*70
Tyre size,load mm Φ80x70 Φ80x70 Φ80x70
Tyre size,balance mm Φ115x50 Φ115x50 Φ115x50
Driving motor kw 1.5 1.5 1.5
Lifting motor kw 2.5 2.5 2.5
Steering systerm Electromagnetic Electromagnetic Electromagnetic
Battery V/Ah 24/210 24/210 24/210
Battery continues working time h 4 4 4
Max.Driving speed, load/unload km/h 3.5 / 5.5 3.5 / 5.5 3.5 / 5.5
Max.Lifting speed, load/unload mm/s 70/120 70/120 70/120
Max.Lowering speed, load/unload mm/s 110/90 110/90 110/90
Max.climbing ability, load/unload % 4 / 6 4 / 6 4 / 6
Service brake Electromagnetic Electromagnetic Electromagnetic
